ZDQF-1080AF Fully Automatic Label Disassembling Machine (Waste Cleaner)

ZDQF-1080AF Fully Automatic Label Disassembling Machine (Waste Cleaner)

25Times/min Off-Label Speed

1080*780(mm) Max. Paper Size

600*400(mm) Min. Paper Size

Performance and Characteristics

This machine adopts advanced technology athome and abroad, and it is a new generation product developed by our R&D team. Special equipment forautomatic trimming and picking up of various kinds ofcardboard, trademarks (tags), plastic skins and other small packages aiter automatic die cuting and semiautomatic die cutting. The machine adopts hydraulic structure, high,precision lead screw guide rail and servo program control system to ensure the durability and safe operation ofthe machine.

1. Simple operation, fully automatic operation, time-saving and labor-saving

2. The eficiency ofunpacking is high, and it can reach the speed of processing several meters per minute.

3. The accuracy is high, and the label can be peeled offaccurately without damaging the packaging material.

4. High safety, using a closed fuselage shell to ensure safe operation.

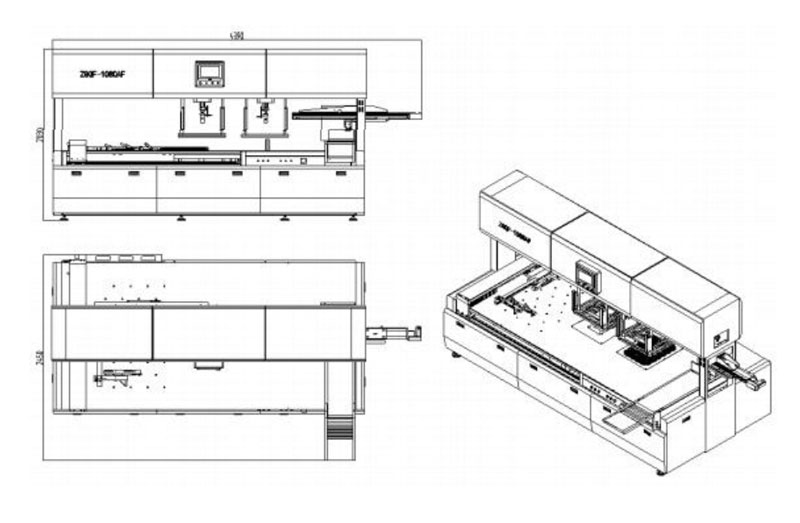

Schematic Diagram of Automatic Waste Disposal Machine

Technical Parameters
Model ZDQF-1080AF
Max. paper size 1080*780mm
Min. paper size 600*400mm
Max. paper piling height 100mm
Min. paper piling height 40mm
Worktable height 820mm
Max. off-label size 350*350mm
Min. off-label size 30*30mm
Off-label speed 25Times/min
Max. pressure 90bar
Power supply voltage 380V
Working frequency 50/60HZ
Working air pressure 5-8 bar
Air consumption 2L/min
Production power 5KW
Total power 7KW
Dimensions (L*W*H) 3750*1900*2020mm
Weight 4500kg
