ZDCS-F Handbag Rope Threading Machine

ZDCS-F Handbag Rope Threading Machine

40 pcs/min Production Speed

Φ5mm (Customizable) Rope hole Dia

110mm Hand rope length

Performance and Characteristics

This machine adopts advanced technolgy athome and abroad, combined with a new generation of produdts developed by ourindependent researdh and development team, handbag rope threading machine. This project has solved the domes tic and intemaional market demand and won dozens of national patents. Pracical and eficient, it is an ideal equipment to sove the problem ofstringing bags and other packaging forourcustomers.

1. The casting is selected as the fuselage to ensure the stable service life ofthe machine

2. Adopt full servo system control, high-precision linear guide rail operation and high perfommance pneumatic system

3. Easy to control, one-button start

4. lmprove the overall efficiency, By dividing the operation ofthe handbag stinging machine into multiple stations, each station completes the operation together, thus greatly improving the operation efficiency.

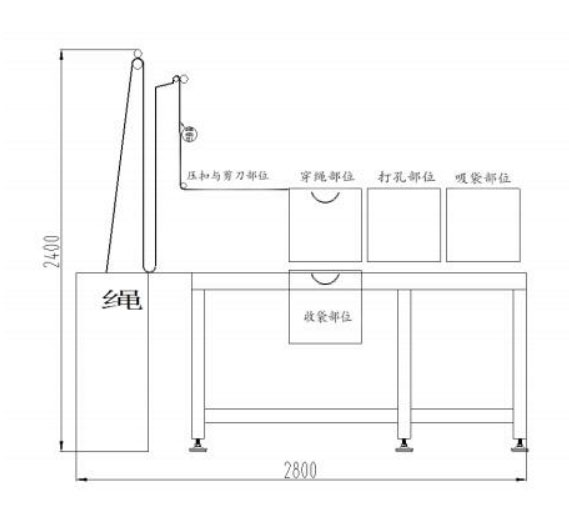

Schematic Diagram of Automatic Rope Threading Machine

Technical Parameters
Model ZDCS-F
Bag width 150-440mm
Bag hight 150-440mm
Weight of paper bag 157-300g
Distance of rope holes 90-140 mm(Customizable)
Rope hole Dia Φ5mm(Customizable)
Hand rope length 110mm(total length 290-420mm)
Machine dimensions (L*W*H) 2570*1800*2400mm
Width of plastic buckle 45mm
Max. production speed 40 pieces per minute
Air pressure 6-8MPa
Weight 1800kg
Max. power 12KW
Production power 7KW
Suitable rope cotton rope、three strand rope
